Modular Energy Storage System
SigenStack
Sigenergy's latest modular BESS solution, SigenStack, offers a flexible, reliable and scalable option for commercial applications. Its innovative modular design simplifies site selection, system placement and installation. With complete pack-level safety management, everything is under control.
SigenStack
Innovative modular BESS with unparalleled safety precision and cost-effectiveness
Modular Design &
stackable installation
12 kWh per module, flexible deployment, precisely meeting project needs to cut investment and redundancy.
Easier installation, no need for cranes or other special installation equipment. Stack and play with no complex wiring between modules.
Automatic device networking enables ultra-fast commissioning of the entire system.
Less footprint,
lower noise operation
Higher energy density requires less footprint, so you can install in more places with greater confidence.
Smart Air Cooling technology dynamically controls fan speed based on operating environments to achieve lower noise operation than traditional solutions.
Pack-level Safety
Protection
Granular fire suppression per 12 kWh, with faster and more precise thermal runaway control than traditional fire suppression solutions.
Innovative DC Coupling
Lower CAPEX, free from PV inverter, extra AC combiner or MV station, etc. A simpler system with fewer devices and points of failure always leads to higher availability.
As a DC-coupled solution, SigenStack improves round-trip efficiency by up to 2% compared to traditional AC-coupled solutions where energy is lost due to AC/DC conversion and extra cables*.
*Refer to solar+storage scenario

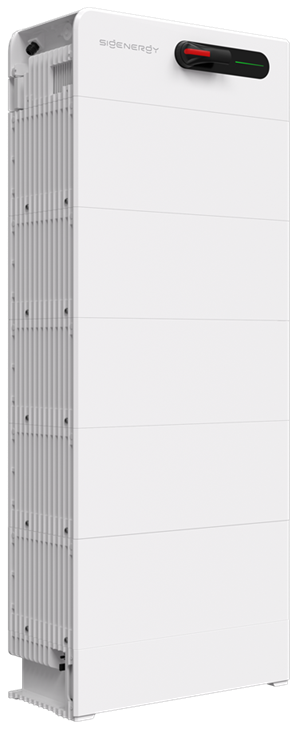

SigenStack
| Battery type | LiFePO4 |
| Cell capacity | 314 Ah |
|
Totoal energy capacity per module |
12.06 kWh |
| Nominal charge / discharge rate |
0.5 C |
| Max. charge / discharge rate | 1 C |
| System configuration quantity range |
4 ~ 21 |
| Max. number of modules per stack | 7 |
| Noise | <65 dB |
|
Dimensions (W / H / D) |
770 / 300 / 363 mm |
|
Ingress protection rating |
IP66 |
|
Compatible inverter |
Sigen C&I Hybrid Inverter Series |
|
Compatible BC |
SigenStack BC Series |
